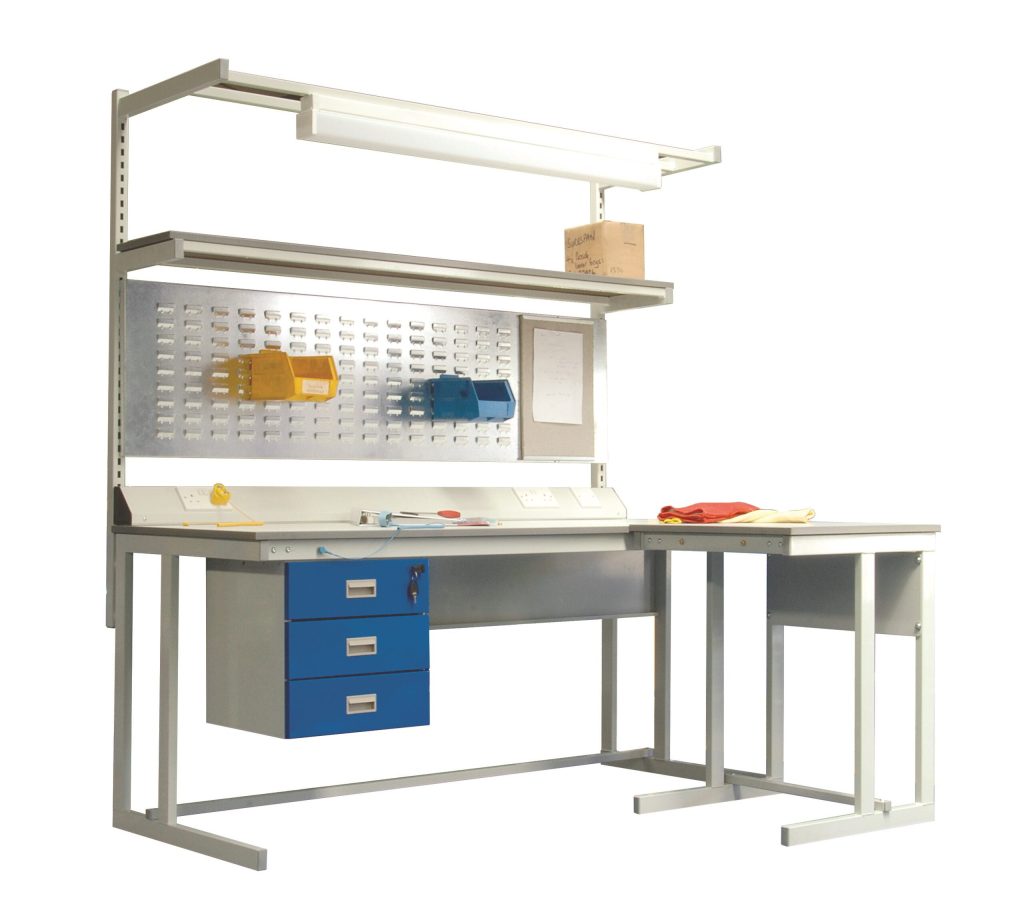

ESD Cantilever Workbenches
Fully Welded & Assembled As Standard. Bespoke To Customer Specification & Design
High Quality UK Manufactured Robust ESD Workbenches
The ESD cantilever workbenches are ideal for assembly, production and performing electronic component/computer repairs. The cantilever construction offers users maximum leg room. Our design can fit any of the workstation and grounding accessories, making it completely customisable. The framework comes with a choice of colours, with an option to choose between a Elimistat Rubber ESD worktop or a Laminate ESD worktop.
Standard bench height is 840mm (760mm and 920mm heights are also available).
Bespoke Sizes & Accessories available on request.
Non-ESD and Bolted Design Benches also available on request.
- Description
- Bench Accessories
- Framework Colours
- Worktops
Description
Should the benches displayed on our website not be suitable for your requirements, please get in touch as we are able to provide a tailored quotation for bespoke ESD benches.
Part Numbers:
| STANDARD BENCH SIZES (Bespoke Sizes Available) | ||
| Elimistat Rubber ESD Worktop | Laminate ESD Worktop | Size in mm (HxWxD) |
| CL841275RBR | CL841275LAM | 840x1200x750 |
| CL841290RBR | CL841290LAM | 840x1200x900 |
| CL841575RBR | CL841575LAM | 840x1500x750 |
| CL841590RBR | CL841590LAM | 840x1500x900 |
| CL841875RBR | CL841875LAM | 840x1800x750 |
| CL841890RBR | CL841890LAM | 840x1800x900 |
| EXTENSION BENCH SIZES | ||
| Elimistat Rubber ESD Worktop | Laminate ESD Worktop | Size in mm (HxWxD) |
| EBCL846060RBR | EBCL846060LAM | 840x600x600 |
| EBCL849060RBR | EBCL849060LAM | 840x900x600 |
| EBCL841260RBR | EBCL841260LAM | 840x1200x600 |
These ESD benches are manufactured to order. The lead time for manufacture can vary.
For an exact lead time, please call or email our sales team.
Framework Colours Available:
All ESD worktops provided confirm with IEC 61340 standard.
Elimistat® Rubber ESD Worktop:-
The Elimistat® Rubber ESD disspative worktop is 20mm thick as standard (Other thicknesses available on request). This worktop comes with a 2 layer surface covering made from rubber. The top layer is dissipative and the bottom layer is conductive. The surface of the worktop comes in a textured finish which provides a non-glare finish and prevents a slippery surface by providing some friction. The surface resistivity of the limistat® Rubber ESD disspative worktop is between 107 – 109 ohms.
Elimistat® Laminate ESD Worktop:-
The Elimistat® Laminate ESD worktop is 20mm thick as standard. The laminate ESD worktop is manufactured using plastic laminate and has a static dissipative top. The laminate ESD worktop is durable and resistant to heat, solder and most chemicals. The ESD laminate worktop is easy to maintain and clean, providing a surface resistivity of 106 – 108 ohms.
