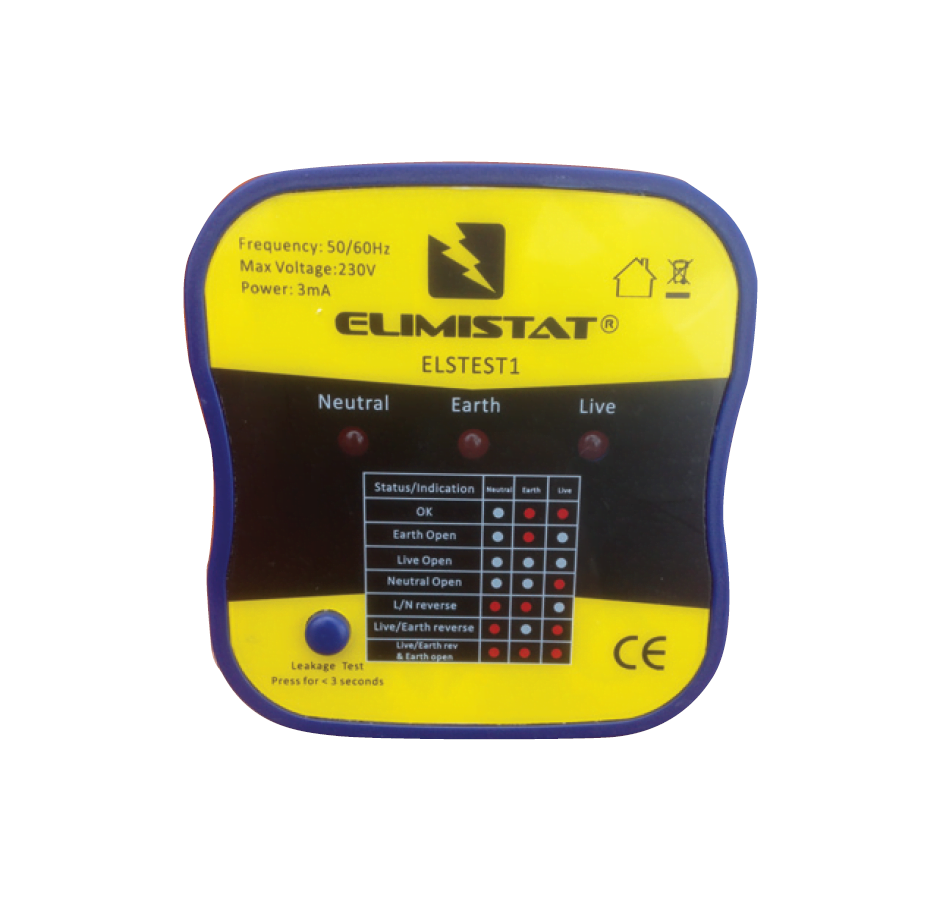

Mains RCD Polarity Tester With Leakage Test
Features
• Efficient testing of RCDs
• Definite indication of socket wiring
• 4 versions available: Euro plug, UK plug, USA plug& China plug.
• 6 indication range: Wiring OK, Earth open, Live open, Neutral open, L/N reverse, Live/Earth reverse, Live/Earth reverse with Earth open
• Comes with leakage test
- Description
Description
| Elimistat® Socket Tester | |
| MODEL | ELSTEST1 |
| Testing Voltage | AC 230V±10% or AC 110V±10% |
| Frequency | 50-60Hz |
| Contact Voltage Limit | < AC 50V (relative to ground) |
| Overload Voltage Protection | AC/DC 300V |
| Working Temperature | 0°C~40°C |
| Working Humidity | 80% |
| RCD test | 30mA |
| Reaction Limit | < AC 50V (relative to ground) |
General Characteristics
| Product Size | EU version | 72 x 78 x 80mm |
| UK,US,CN version | 72 x 78 x 55mm | |
| Product Net Weight | 40g | |
