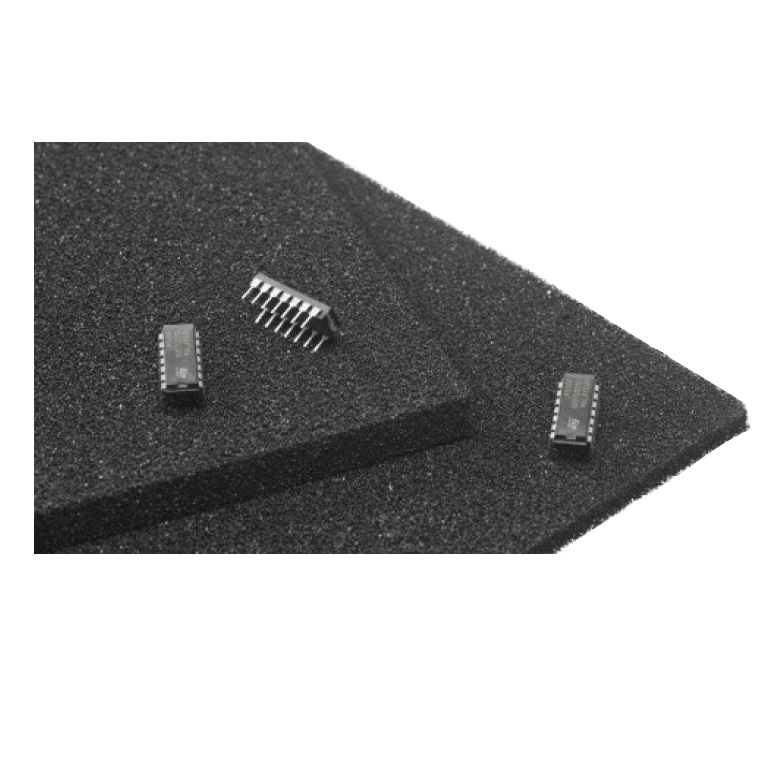

Semi Rigid Conductive Pin-Insertion Foam

Semi Rigid Conductive Pin-Insertion Foam

Protect highly sensitive devices with this material which is available in a range of thicknesses ranging from 5mm to 50mm.

Features and Benefits

  • A semi rigid electronically conductive High Density foam
  • Used for physical and static protection of integrated circuits via pin insertion
  • Non corrosive, non shedding and non marking

Available in bespoke sizes and thicknesses. Please call for more information

Enquire Now

Description

High Density Rigid Conductive Foam
Foam Type Polyether based polyurethane impregnated with a carbon loaded rigid latex
Density >50Kg/m3
Surface Resistance 104 Ohms
Volume Resistance 30 Ohm m
Compression Set 25%
Colour Black
Format Sheets / Rolls / Cut parts
