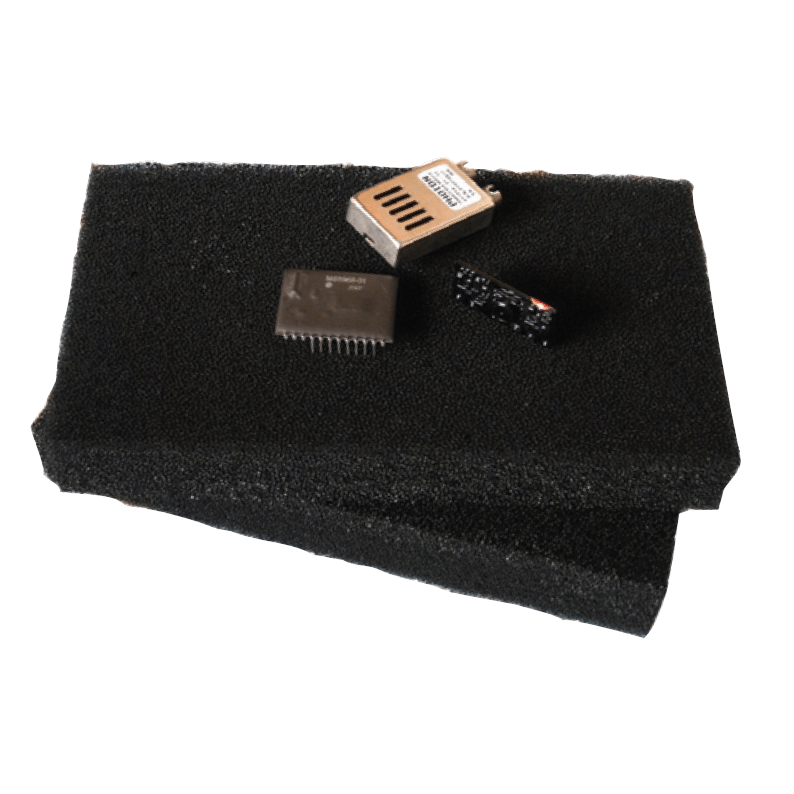

Low Density Soft Conductive Foam

Low Density Soft Conductive Foam

Protect highly sensitive devices from static with our soft conductive Low Density foam. With a surface resistivity between 103 and 105 Ohms/square, this product can be supplied in a range of thicknesses from 3mm to 50mm.

Features and Benefits

  • A soft, lightweight, flexible electronically conductive foam
  • protection of sensitive devices
  • Non corrosive, non shedding and non marking
  • Supplied in multiple formats: cut pieces, die cut parts, egg box profiled, cardboard packaging or
    situ with conductive plastic.

Available in bespoke sizes and thicknesses. Please call for more information

Enquire Now

Description

Specification
Foam Type Polyether based Polyurethane impregnated
with a carbon loaded flexible latex
Density >20Kg/m3
Surface Resistance 104 Ohms
Volume Resistance 30 Ohm m
Compression Set Set 10%
Colour Black
Format Sheets / Rolls, Cut parts
