Fume Extraction With Filtering & Purification
Description:The Elimistat® Fume Purifying & Filtering System is for cleaning of both particles and gases. It is designed to filter the harmful substances, such as hydrocarbon and cyanide, during the process of soldering, tin dipping in the solder pot, laser marking & carving, printing, etc. It catches harmful smoke with freestanding ducts and air volume can be adjusted to significantly improve your working environment.
It has a triple-filter system:
1) Pre-Filter: the large-size pad filter can filter large particles of dust.
2) Middle Filter: it filters the bigger powders for prolonging the main filter’s life.
3) Main Filter: it includes a HEPA filter and gas filter for the final filteration process.
- Description
Description
Features:

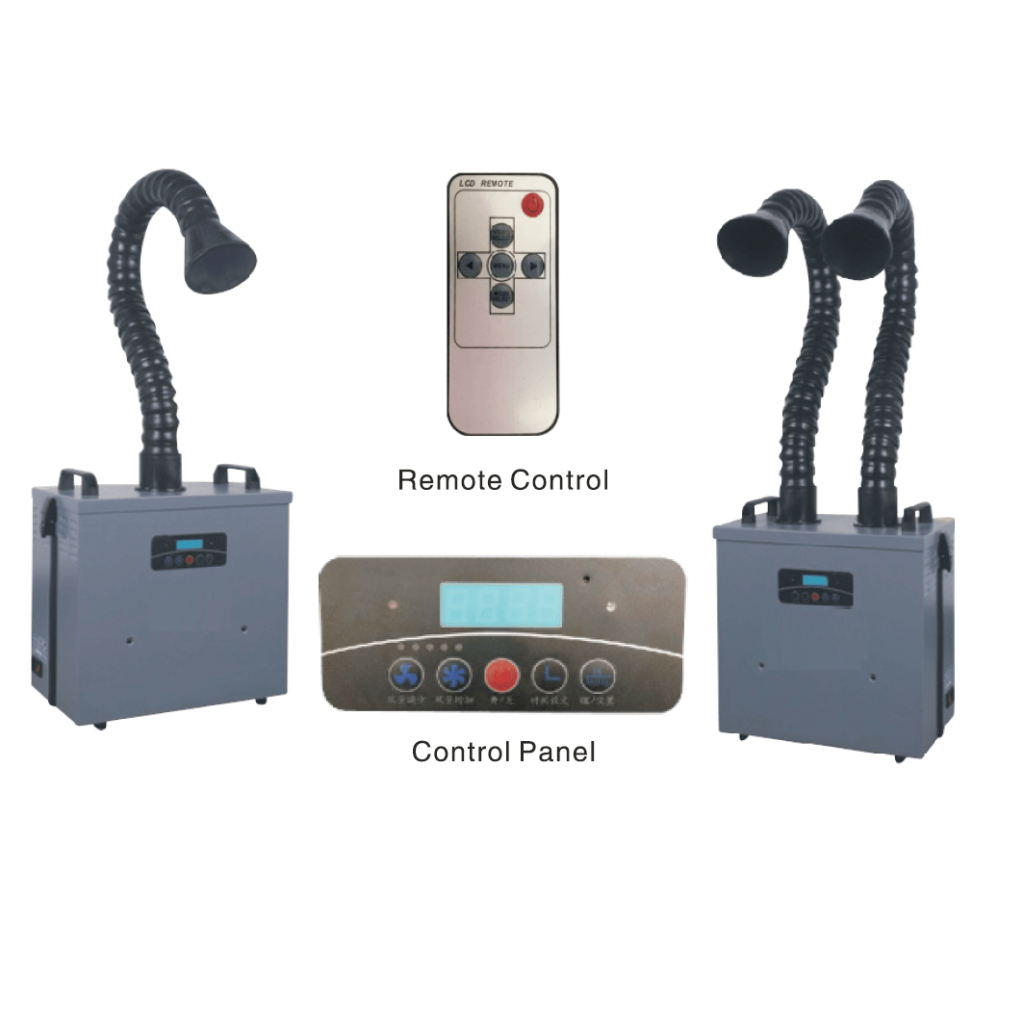

– With the intelligent control panel and digital display, the operation becomes easy and simple. By the press of a button, you can freely adjust air volume and set the working time.
– Equipped with a remote control, the operator can control the machine from a distance.
– With a truly sensitive and effective “Filter Clogging Alarm System”. When the filter gets saturated and clogged, the machine will output an alert sound and light within 10 seconds. This will notify the operator to replace the filter, to guarantee a comfortable working environment
– The high-voltage and large-volume brushless motor ensures; low vibration, low noise, stable operation and a long life span.
– Air ducts can be bent or lengthened as desired. They will maintain their shape after adjustment, letting you place them exactly where suction is needed.
| Part No: | Power | No. of Ducts | Systemic Flow | Air Velocity | Filtering Efficiency | Duct Length | Noise | Dimensions | Weight |
| ELSOFE1 | 80W | 1 | 235M3/h | 17m/s | 99.97% | 75mm x 1.4m | < 55dB | 420 x 245 x 400mm | 12KG |
| ELSOFE2 | 200W | 1 | 2 x 150M3/h | 2 x 11m/s | 99.97% | 75mm x 1.4m | <60dB | 420 x 245 x 400mm | 13KG |
