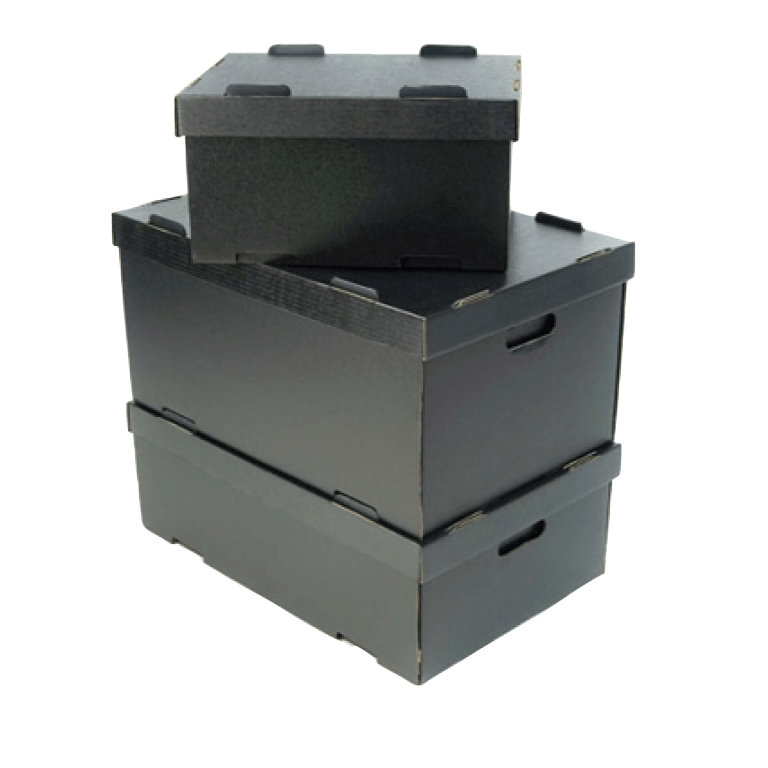

Conductive Stacking Totes

Conductive Stacking Totes

Conductive stacking tote bins are a flexible solution for inplant component handling and storage when ESD
protection is required. They are fabricated from conductive fibreboard and are available usually from stock, in a
range of standard sizes.

They can also be customised through the addition of stock divisions to specifically suit your application. This ensures that they offer a light weight, cost effective alternative to conventional injected moulded products,
whilst still providing a high degree of static protection.

Enquire Now

Description

Features and Benefits

  • Easily stacked and organised
  • Can be manufactured in any size
  • Inset handles for ease of use
  • Divisions available for customisation
  • Viable alternative to injection moulded products
Part No. Dimension A (mm)
Internal      External
Dimension B (mm)
Internal      External
Dimension C (mm)
Internal      External
ELCCT5-643 572              600 372              400 291             300
ELCCT5-642 572              600 372              400 211             220
ELCCT5-641 572              600 372              400 111             120
ELCCT5-640 584              600 384              600 55             58
ELCCT5-433 372              400 272              300  291             300
ELCCT5-432 372              400 272              300  211             220
ELCCT5-431 372              400 272              300  111             120
ELCCT5-431.6 372              400 272              300  160             165

Conductive Collapsible Tote Lid

Part No. Internal Dimensions
ELCCTL5-64 600 x 400 x 50
ELCCTL5-43 400 x 300 x 50
