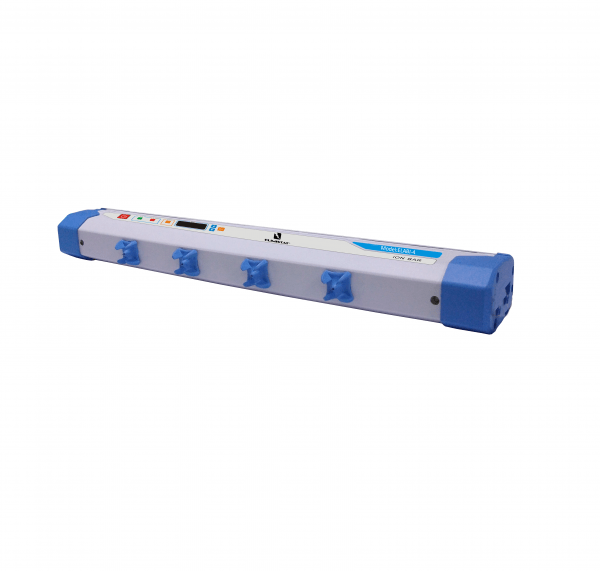

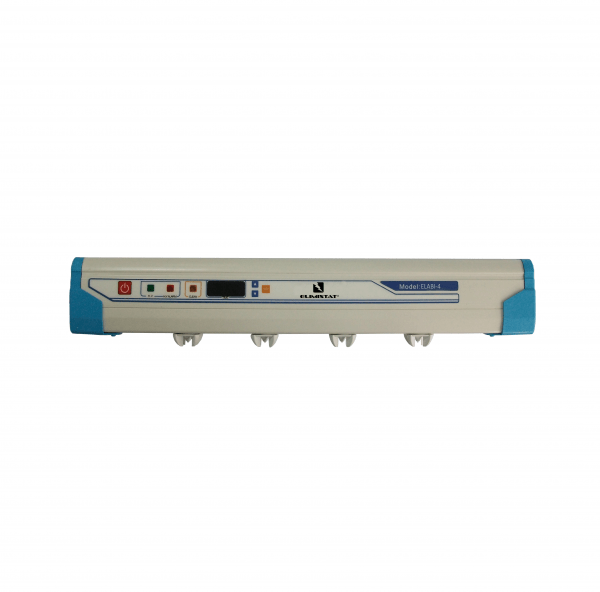

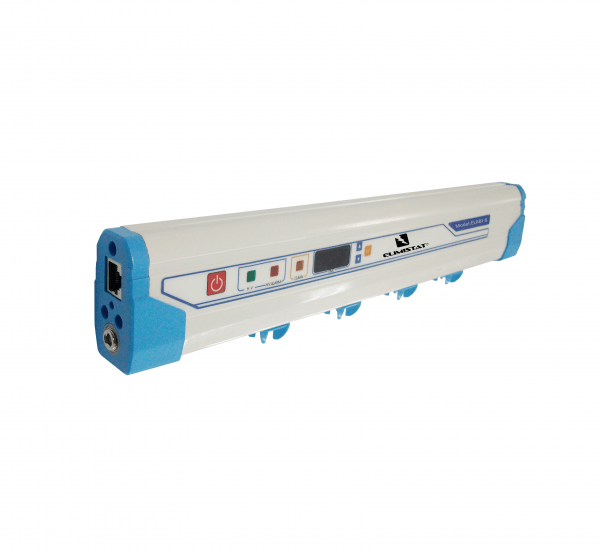

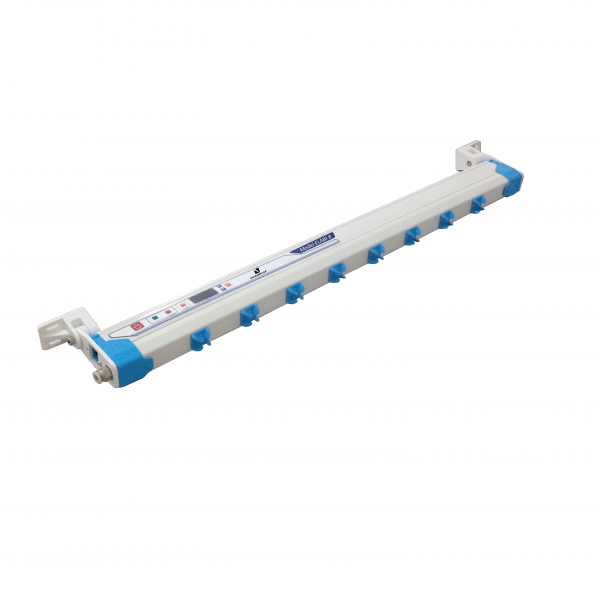

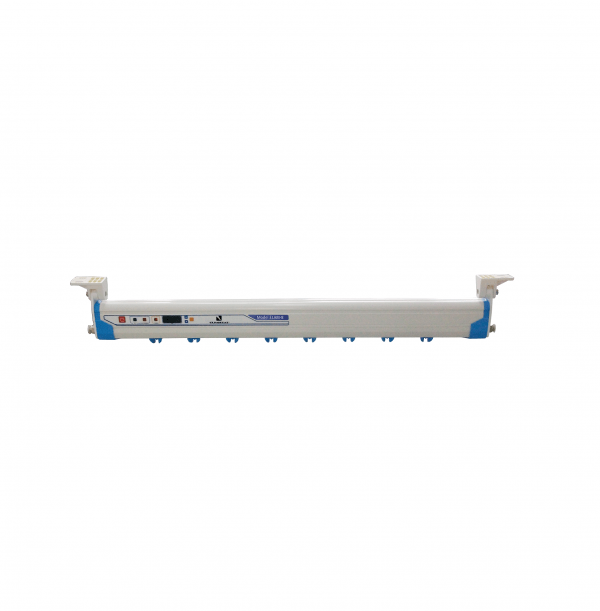

Air Bar Ionizers
Air Bar Ionizers (Multiple Lengths)
Product price: please contact us for a competitive quote
Scroll below for a detailed description.
- Description
- SPECIFICATIONS
Description
Product Features
-
- Uses high frequency AC supply for high levels of ion concentration.
- The nozzel is designed for easy cleaning and maintenance.
- Automatic ion balance system, ion balance can be acheived: within 0+15V.
- Equipped with an anti-static normal running indicator and alarm lamp for abnormal high pressure.
- Auto cleaning programmable interface with LCD display.
Table of Part No’s & Sizes (mm)
| Part No: | A | B | C | D | E | F |
| ELABI-4 | 440 | 420.5 | 401.5 | 382.5 | 360 | 180 |
| ELABI-8 | 680 | 660.5 | 641.5 | 622.5 | 600 | 420 |
| ELABI-12 | 920 | 900.5 | 881.5 | 862.5 | 840 | 660 |
| ELABI-16 | 1160 | 1140.5 | 1121.5 | 1102.5 | 1080 | 900 |
| ELABI-20 | 1400 | 1380.5 | 1361.5 | 1342.5 | 1320 | 1140 |
Operation area and Operation time
This section shows typical examples of the time necessary for static elimination, and the relationship of the installation distance between the target and the static elimination bar.
Measurement conditions:
A.The time required to eliminate the static charge of the target from +1000V to +100V is measured.
B.The 150X150 mm plate monitor(20pF) is used.
C.ELABI-4 is used.Air pressure 0.2MPa and 0.5MPa.NO downflow
